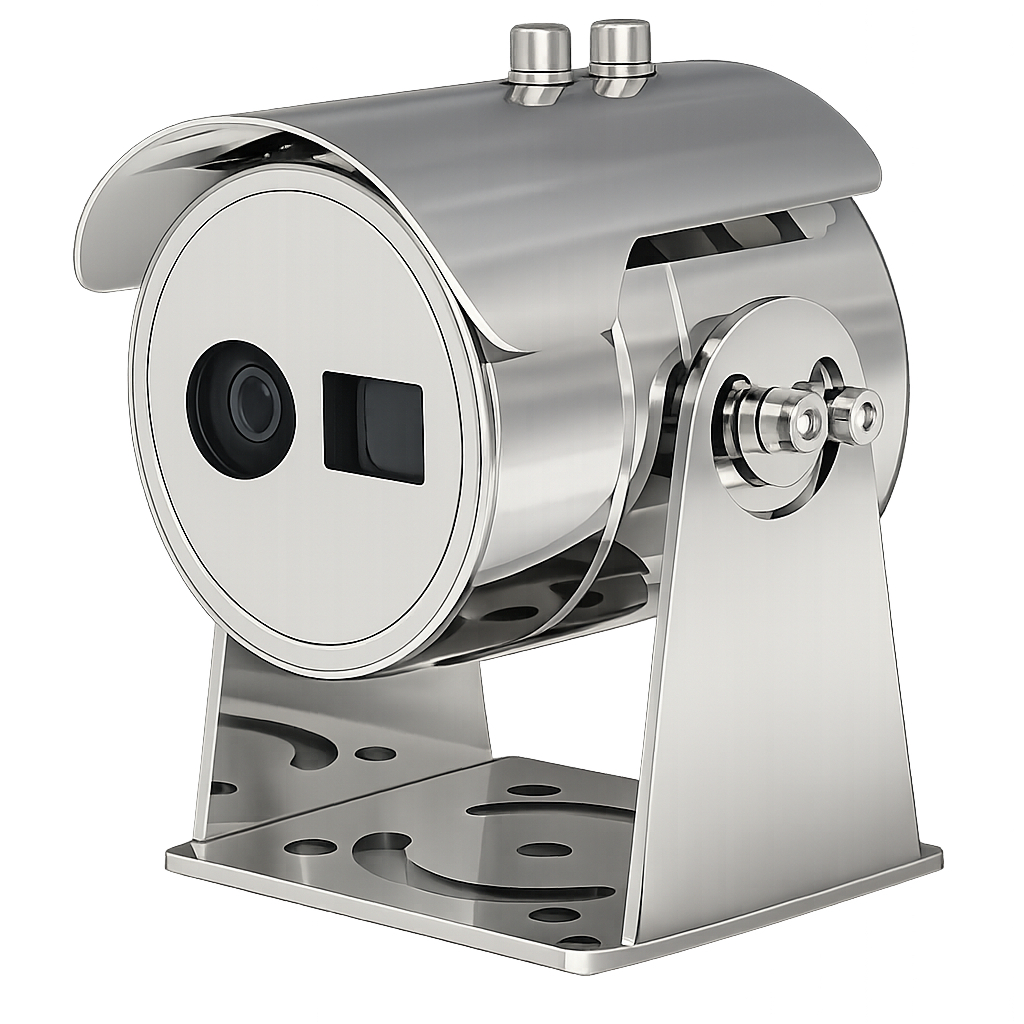

Key Features
Ex Certifications : IECEx / ATEX / KCs / NEPSI / JPEx / TS
Ex Certifications (Gas) : Ex d IIC T6 Gb, Zone 1 & 2
Ex Certifications (Dust) : Ex tb IIIC T85˚C Db, Zone 21 & 22
Electropolished AISI 316L Stainless Steel / Lost-wax casting mold structure without welds
Silicon Glass / Tempered Glass
Ingress Protection Rating : IP66
Operating Temperature : -25°C ~ +55°C
Ambient Temperature : -40°C ~ +60°C
Cable Entry : 1 x 1/2“ NPT
3.3mm Fixed Lens
Thermal : 256X192 / Optical : 1920X1080 / 160(H) x 120(V)-Option
Thermal Camera SDK, RTSP, ONVIF / Optical RTP, RTSP, ONVIF
Pixel Pitch : 12㎛
Support Modubus Protocol
Three-phase Imbalance detection
Temperature Range : Accuracy : -20°C ~ 150°C, 20°C ~ 550°C
Support Point, Line, Plane, Polygon ROI
PoE Class 3 (IEEE 802.3af) support / DC 12V 3A
